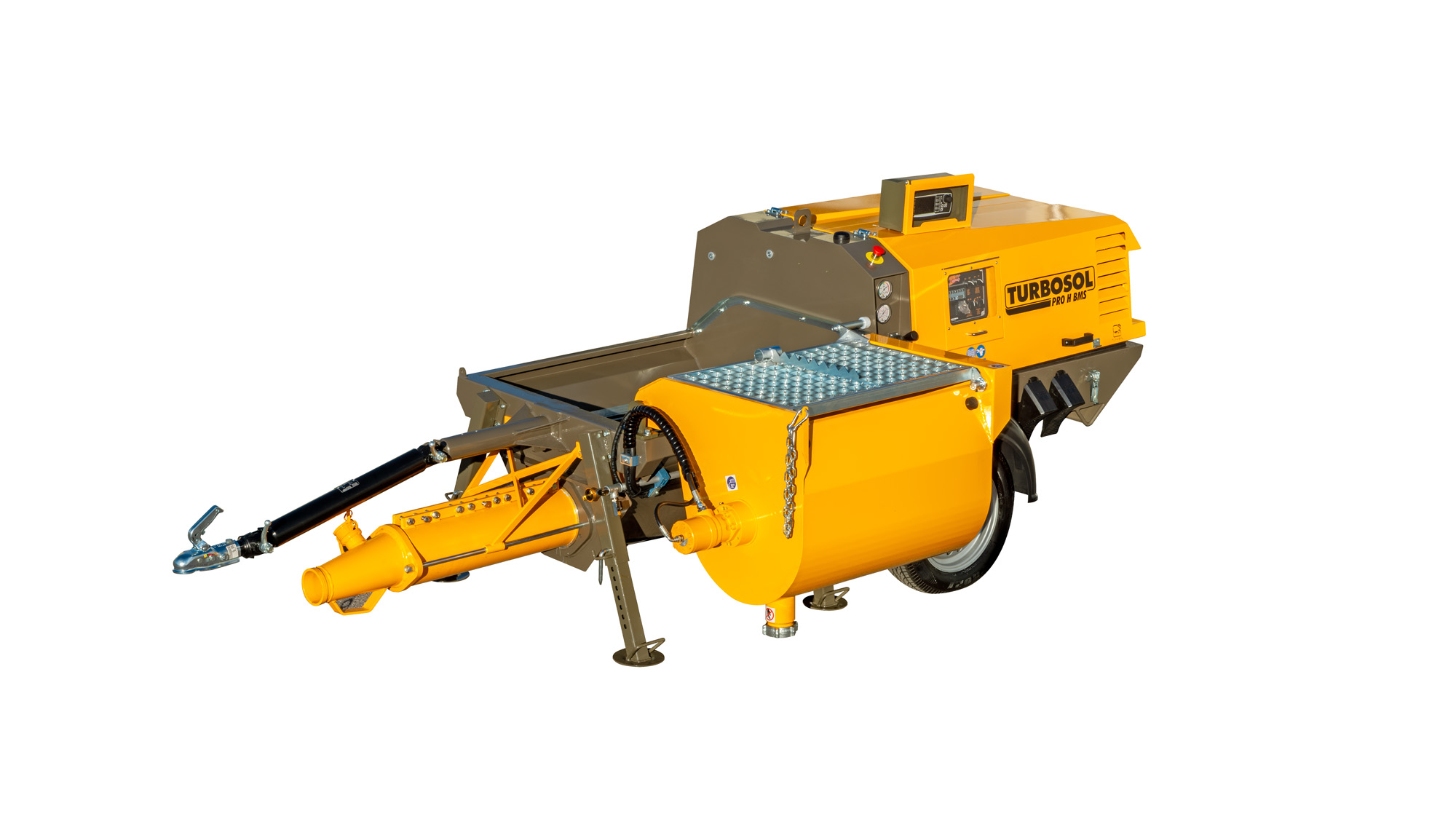

PRO H BMS

The ideal solution for mixing, pumping and spraying large volumes of material

Highly performance machine, extremely flexible to use. Thanks to the dual speed hydraulic motor and the two types interchangeable pumps, PRO H BMS is able to mix, pump and spray different materials at great heights and distances.

Brochure
In action

PRO H BMS
Applications

Applications

  • Structural mortars and cementitious slurries
  • Self-levelling screeds, grouts and concrete
  • Injection of pressure micropiles
  • Shotcreting, plastering, refractory mortars and fiber-reinforced mortars
Technical advantages

Technical advantages

  • With a max. aggregate size of 16-18 mm, PRO H BMS is able to deliver up to 18 cubic meters of admixtures per hour
  • Two infinitely variable speeds, two pump groups, an incoporated compressor and a large mixer for make PRO H BMS total independent and suitable for any site application
  • It’s equipped with the special Hydrotronic hydraulic circuit with variable displacement pump that allows to saving up to 1 liter of fuel per hour
  • Safety devices: emergency button, diesel engine protection sensors, automatic stop when canopy, hopper grid and mixer grid lifting

Technical data








Liquid cooled diesel engine KDW 1404 Kohler – 18,8 kW  - Stage V KDW 1404 Kohler – 18,8 kW  - Stage V
Worm pump L8.2 2L7
Infinitely adjustable output [*] 0 ÷ 150 l/min [*1] - 0 ÷ 300 l/min [*2] 0  ÷ 25 l/min [*1] - 0 ÷ 50 l/min [*2]
Max. aggregate size  16 ÷ 18 mm 8 mm
Max. working pressure  20 bar  30 bar
Compressor 400 l 400 l
Hopper capacity  200 l 200 l
Up-righting mixer capacity 200 l 200 l
Delivery distance [*] 100 m  140 m
Delivery height [*] 60 m  80 m
Filling height 86 cm 86 cm
Chassis elastic axle with draw-bar elastic axle with draw-bar
Size (L x W x H)  321 x 176 x 120 cm / 372 x 134 x 153 cm [#]
Weight 870 kg 870 kg
[*] The data indicated are theoretical and depend on the quality and consistency of the materials to be used wear and tear of the pump and the diameter of the hoses. The performance in distance and height can not be reached simultaneously.
[*1] Low speed
[*2] High speed
[#] In towing position.




Shotcrete gun D35

Shotcrete gun D35

Shotcrete gun for hose Ø 35

SILICATE SHOTCRETE GUN D50

SILICATE SHOTCRETE GUN D50

Shotcrete gun Ø 50 with silicate coupling

SHOTCRETE GUN D50

SHOTCRETE GUN D50

Shotcrete gun Ø 50

L8.2 Pump

L8.2 Pump

Stator and rotor L8.2 pump

HIGH PRESSURE CLEANER

HIGH PRESSURE CLEANER

High pressure cleaner

PUMPING NOZZLE

PUMPING NOZZLE

Pumping nozzle for mortars and self-levelling screeds
